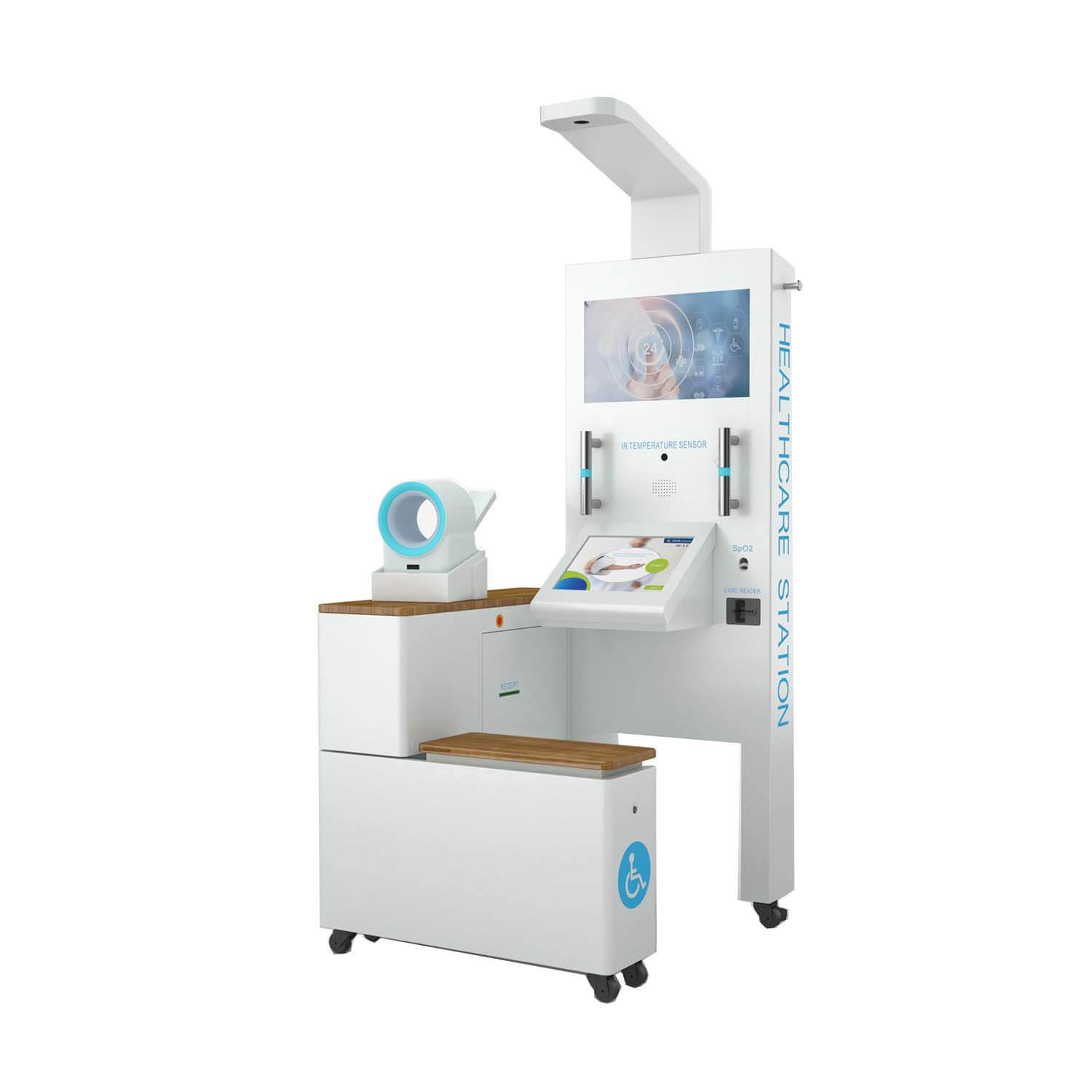

Health Screening Kiosk SKT-D1007


Health Screening kiosk is one of SUNSON TECH’s patent products in the Medical industry; based on the reliable hardware, SUNSON developed its software, including the front-end, database, and back-end applications (Second Phase), which can offer the turnkey solution of primary health screening by increasing the availability and efficiency of essential health check-up functions, and also by providing a real-time monitoring system where customers can keep track and got access for all their previous health records and got the ability to compare it VS the current results.

Scenarios:

Hospitals, social welfare centers, nursing homes, pharmacies, schools, enterprises and institutions and other places.





Product Attributes:

    • Model No. : SKT-D1007
    • Brand: : SUNSON TECH
    • Touchmonitor : 17 inch
    • PC : Industrial PC
    • Power supply : Plugin
    • Material : Metal
    • After-sales service : Online technical support
    • Product quality : Conform to IEC60601
    • Certificate : MDSAP&ETL
    • Brand Name : SUNSON
    • Warranty : 1 year
    • place of origin : China

    Supply Ability & Additional Information:

    • Packaging : Protective film+wooden case
    • Productivity : 500 Units per month
    • Transportation : Ocean, Land, Air, Express
    • Place of Origin : China
    • Supply Ability : 1000units per month
    • Certificate : ISO9001
    • HS Code : 84716040
    • Payment Type : L/C,T/T
    • Incoterm : FOB,CFR,EXW,CIF

    Standard Product Configuration

    Module Performance
    Main Control Industrial control motherboard, H81 chip, LGA1150 CPU architecture, 2 DDRIII memory slots, 1 VGA interface, 1 HDMI, 10 USB, 10 RS232 interfaces, ATX300W power supply; poweron start, timer switch function.
    Capacitive Screen 15 inch capacitive integrated screen, VGA interface, DC12V, resolution 1024*768, USB interface, resolution 4096*4096.
    Ads Screen 27 inch LCD screen, HDMI interface, with driver board (DC12), control button, rectifier board (DC24V), display ratio 16:10, resolution 1920 * 1080.
    Sphygmomanometer USB interface, DC12V, roll type, arm circumference 16CM43CM, 16CM-43CM0mmhg-300mmhg, systolic blood pressure: 8.0-30.7KPA, diastolic pressure: 5.3-17.3KPA, 860HPA1060HAP.
    Blood Oxygen USB interface, DC5V, blood oxygen saturation range 70%- 100%.
    Weight/th> RS485 interface, DC12V, range 200KG, accuracy 0.1KG
    Height RS485 interface, DC12V, measuring range 8-800CM, accuracy 0.1CM.
    Body Temperature USB interface, DC5V, temperature measurement range 34-42.9 degrees, infrared sensing, distance 5-15CM, accuracy 0.2 degrees
    BMI TTL interface, DC5V, multi-frequency two-way electric shock, measuring frequency 5KHZ, 50KHZ, 250KHZ, 500KHZ, measuring range 75-1500 ohms, left and right arms.
    Electrocardiogram RS232 interface, DC5V, triple lead, with triple wire L1.5 m, wire
    Slip Printing Pin 3.0, tricolor limb clip. DC12V, rs232 interface, paper width 58mm, half cut, paper will be full of function, white, with lock
    Speakers Support multimedia voice system.
    Power Supply AC110V AC input and output 150W, DC12V12A, 24V8A.
    Voltage AC110V/220V, 300W
    Communication Methods Ethernet CTP/IP protocol.

    Features:

      • The product has passed ETL 60601 certification and is produced in strict accordance with ISO13485 medical system and MDSAP quality management system.
      • Self-service detection, accurate results, easy to use and network connection communication, data transmission to the public health platform, users can track the previous measured records, greatly improving medical work efficiency.
      • Voice, text, animation pilotage.
      • Support touch operation, simple and convenient.

    Appearance:

    The appearance design adopts the advertising screen and operation screen design scheme, which is stable and generous, the overall ergonomic design, the color collocation is reasonable, and the appearance process is fine, novel, beautiful and noble.

    Basic Features

      • Blood pressure measurement
      • Blood oxygen measurement
      • Height measurement
      • Weight measurement
      • Body temperature measurement

    Extended Features

      • BMI measurement
      • Slip printing
      • NFC card reader

    Performance

    Low power motherboard, good heat dissipation effect, stable performance, long service life, good reliability, maintainability, easy to use, to meet national security and electromagnetic compatibility requirements

    Structure

      • . The internal structure layout is reasonable; the wiring is neat and standardized, the strong and weak electricity is separated, and the independent wiring is effectively prevented from interfering with each other;
      • The casing is made of high-quality steel, hard and thick, not easy to deform, waterproof, dustproof, riot-proof, wear-resistant

    Function

      • Blood pressure, blood oxygen, height, weight, body temperature, BMI measurement
      • Touch screen operation, simple and intuitive, strong sense of user experience
      • Support users to swipe their cards to log in
